產品概述：
本產品適應南網要求的不銹鋼外殼而開發的全密封機構，因使用環境對產品可靠性的影響，如凝露、沿海腐蝕環境等對電鍍件、電氣元件的性能影響很大，嚴重降低產品使用周期，經常需要去維護保養，對智能化自動化的推廣起到制約作用。所以一款能防水，且體積小，功能齊全，經濟型比較高的機構來達到防凝露、防水、防腐蝕功能要求的操動機構，即防護等級要求IP65。

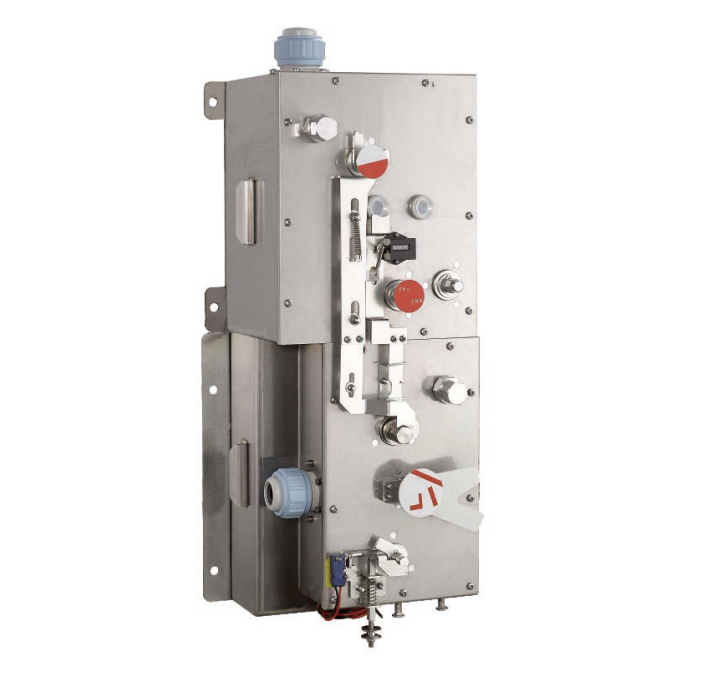

本產品通過外殼與底板將機構封裝在里面，機構高度控制在260mm以下，操作、指示、按鈕等通過密封圈伸出外殼，電氣元件等通過航空插座將點位引出，以此來達到IP65密封要求。特殊處理后可做到IP67密封要求，適用于防凝露、防磨蝕等特殊環境場合使用。
The fully sealed mechanism developed by this product to adapt to the stainless steel shell required by the South Grid, due to the impact of the use environment on the reliability of the product, such as condensation, coastal corrosion environment, etc., has a great impact on the performance of electroplating parts and electrical components, seriously reduces the product service life, and often needs to be maintained, which restricts the promotion of intelligent automation. Therefore, an operating mechanism that can be waterproof, and small in size, complete in function and relatively high in economy to meet the anti-condensation, waterproof and anti-corrosion function requirements, that is, the protection level requires IP65.
This product encapsulates the mechanism through the shell and the bottom plate, the height of the mechanism is controlled below 260mm, the operation, indication, buttons, etc. extend out of the shell through the sealing ring, and the electrical components lead out the point through the aviation socket, so as to meet the IP65 sealing requirements. After special treatment, it can achieve IP67 sealing requirements, and is suitable for use in special environmental occasions such as anti-condensation and anti-abrasion.
技術參數：
V機構輸出角度:約87°V Mechanism output angle:approximately 87°
合閘平均速度 :0.6±0.2Average closing speed:0.6±0.2
分閘平均速度 :1.1±0.2 Average speed ofopening: 1.1±0.2
合閘時間 :20~60ms Closing time:20~60ms
分閘時間:18~45ms Opening time:18~45ms
分合閘不同期:≤2ms Different periods of opening and closing:≤ 2ms
彈跳:≤2ms Bounce:≤2ms
反彈:≤2mm Bounce: ≤2mm
機械壽命:≥10000次 Mechanicallife:≥10000 cycles
